A classical operation applied simultaneously to multiple bits. More...

#include <ClassicalOps.hpp>

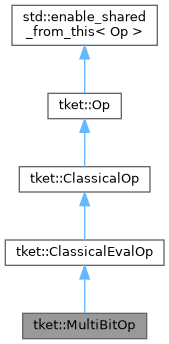

Inheritance diagram for tket::MultiBitOp:

[legend]

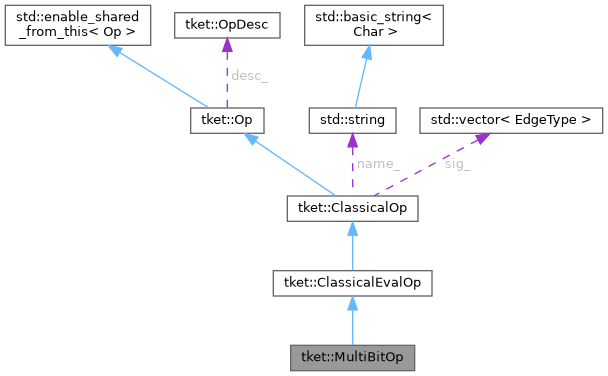

Collaboration diagram for tket::MultiBitOp:

[legend]

Public Member Functions
	MultiBitOp (std::shared_ptr< const ClassicalEvalOp > op, unsigned n)

Op_ptr	symbol_substitution (const SymEngine::map_basic_basic &) const override
	Operation with values for symbols substituted.

std::string	get_name (bool latex) const override
	String representation.

std::shared_ptr< const ClassicalEvalOp >	get_op () const

unsigned	get_n () const

std::vector< bool >	eval (const std::vector< bool > &x) const override
	Evaluation.

bool	is_equal (const Op &other) const override
	Equality check between two MultiBitOp instances.

Public Member Functions inherited from tket::ClassicalEvalOp
	ClassicalEvalOp (OpType type, unsigned n_i, unsigned n_io, unsigned n_o, const std::string &name="")
	Construct a ClassicalEvalOp of specified shape.

Public Member Functions inherited from tket::ClassicalOp
	ClassicalOp (OpType type, unsigned n_i, unsigned n_io, unsigned n_o, const std::string &name="")
	Construct a ClassicalOp of specified shape.

SymSet	free_symbols () const override
	Set of all free symbols occurring in operation parameters.

unsigned	n_qubits () const override

op_signature_t	get_signature () const override
	Vector specifying type of data for each port on op.

nlohmann::json	serialize () const override

unsigned	get_n_i () const
	Number of input-only bits.

unsigned	get_n_io () const
	Number of input-output bits.

unsigned	get_n_o () const
	Number of output-only bits.

Public Member Functions inherited from tket::Op
virtual Op_ptr	dagger () const
	Inverse (of a unitary operation)

virtual Op_ptr	transpose () const
	Transpose of a unitary operation.

virtual std::vector< Expr >	get_params () const
	Sequence of phase parameters, if applicable.

virtual std::vector< Expr >	get_params_reduced () const
	Sequence of phase parameters reduced to canonical range, if applicable.

virtual std::string	get_command_str (const unit_vector_t &args) const
	Command representation.

OpDesc	get_desc () const
	Get operation descriptor.

OpType	get_type () const
	Get operation type.

virtual std::optional< Pauli >	commuting_basis (port_t i) const
	Which Pauli, if any, commutes with the operation at a given port.

virtual bool	commutes_with_basis (const std::optional< Pauli > &colour, port_t i) const
	Whether the operation commutes with the given Pauli at the given port.

virtual bool	is_extern () const
	return if the op is external

virtual std::optional< double >	is_identity () const
	Test whether operation is identity up to a phase and return phase if so.

virtual bool	is_clifford () const
	Test whether operation is in the Clifford group.

virtual bool	has_symmetry (unsigned port1, unsigned port2) const
	Checks for symmetry of port pairs.

virtual Eigen::MatrixXcd	get_unitary () const
	If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Op represents.

virtual	~Op ()

bool	operator== (const Op &other) const

Additional Inherited Members
Static Public Member Functions inherited from tket::ClassicalOp
static Op_ptr	deserialize (const nlohmann::json &j)

Protected Member Functions inherited from tket::Op
	Op (const OpType &type)

Protected Attributes inherited from tket::ClassicalOp
const unsigned	n_i_

const unsigned	n_io_

const unsigned	n_o_

const std::string	name_

std::vector< EdgeType >	sig_

Protected Attributes inherited from tket::Op
const OpDesc	desc_
	Operation descriptor.

const OpType	type_
	Operation type.

Detailed Description

A classical operation applied simultaneously to multiple bits.

The order of arguments is: all arguments to first operation, then all arguments to second operation, and so on.

Definition at line 477 of file ClassicalOps.hpp.

Constructor & Destructor Documentation

◆ MultiBitOp()

tket::MultiBitOp::MultiBitOp	(	std::shared_ptr< const ClassicalEvalOp >	op,
		unsigned	n
	)

Definition at line 373 of file ClassicalOps.cpp.

Member Function Documentation

◆ eval()

std::vector< bool > tket::MultiBitOp::eval ( const std::vector< bool > & x ) const

overridevirtual

Evaluation.

Parameters

x	vector of input bits

Returns: vector of outbut bits

Implements tket::ClassicalEvalOp.

Definition at line 394 of file ClassicalOps.cpp.

◆ get_n()

unsigned tket::MultiBitOp::get_n ( ) const

inline

Definition at line 490 of file ClassicalOps.hpp.

◆ get_name()

std::string tket::MultiBitOp::get_name ( bool latex ) const

overridevirtual

String representation.

Reimplemented from tket::ClassicalOp.

Definition at line 388 of file ClassicalOps.cpp.

◆ get_op()

std::shared_ptr< const ClassicalEvalOp > tket::MultiBitOp::get_op ( ) const

inline

Definition at line 488 of file ClassicalOps.hpp.

◆ is_equal()

bool tket::MultiBitOp::is_equal ( const Op & other ) const

overridevirtual

Equality check between two MultiBitOp instances.

Reimplemented from tket::ClassicalEvalOp.

Definition at line 414 of file ClassicalOps.cpp.

◆ symbol_substitution()

Op_ptr tket::MultiBitOp::symbol_substitution ( const SymEngine::map_basic_basic & sub_map ) const

inlineoverridevirtual

Operation with values for symbols substituted.

Parameters

sub_map map from symbols to values

Returns: New operation with symbols substituted, or a null pointer if the operation type does not support symbols.

Implements tket::Op.

Definition at line 481 of file ClassicalOps.hpp.

The documentation for this class was generated from the following files:

include/tket/Ops/ClassicalOps.hpp
src/Ops/ClassicalOps.cpp
