tket::zx::ZXGen Class Reference

Abstract class for a ZX generator. More...

#include <ZXGenerator.hpp>

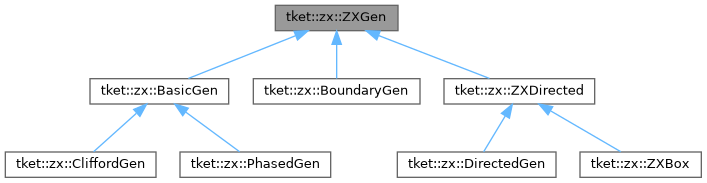

Inheritance diagram for tket::zx::ZXGen:

Public Member Functions
ZXType	get_type () const
virtual std::optional< QuantumType >	get_qtype () const =0
	Return the quantum type of the generator, if it is definable.
virtual bool	valid_edge (std::optional< unsigned > port, QuantumType qtype) const =0
	Returns whether or not an edge of a given QuantumType can validly be placed on the given port.
virtual SymSet	free_symbols () const =0
virtual ZXGen_ptr	symbol_substitution (const SymEngine::map_basic_basic &sub_map) const =0
	Operation with values substituted for symbols.
virtual std::string	get_name (bool latex=false) const =0
	Outputs a string-based description for the generator.
virtual bool	is_equal (const ZXGen &other) const
	Implementation of equivalence checking to eliminate ambiguous warnings for operator==.
bool	operator== (const ZXGen &other) const
virtual	~ZXGen ()

Static Public Member Functions
static ZXGen_ptr	create_gen (ZXType type, QuantumType qtype=QuantumType::Quantum)
	Generic constructors for obtaining generators with more generality than going via subtype constructors.
static ZXGen_ptr	create_gen (ZXType type, const Expr &param, QuantumType qtype=QuantumType::Quantum)
static ZXGen_ptr	create_gen (ZXType type, bool param, QuantumType qtype=QuantumType::Quantum)

Protected Member Functions
	ZXGen (ZXType type)
	ZXGen (Base class) implementation.

Protected Attributes
const ZXType	type_

Detailed Description

Abstract class for a ZX generator.

Each ZXType has a single possible subclass that can realise it, allowing us to statically cast to a subclass once that is determined. Treatment of ports and QuantumType is handled by each subclass.

Definition at line 122 of file ZXGenerator.hpp.

Constructor & Destructor Documentation

~ZXGen()

tket::zx::ZXGen::~ZXGen ( )

virtual

Definition at line 89 of file ZXGenerator.cpp.

ZXGen()

tket::zx::ZXGen::ZXGen ( ZXType  type )

protected

ZXGen (Base class) implementation.

Definition at line 79 of file ZXGenerator.cpp.

Member Function Documentation

create_gen() [1/3]

ZXGen_ptr tket::zx::ZXGen::create_gen ( ZXType  type, bool  param, QuantumType  qtype = QuantumType::Quantum  )

static

Definition at line 148 of file ZXGenerator.cpp.

create_gen() [2/3]

ZXGen_ptr tket::zx::ZXGen::create_gen ( ZXType  type, const Expr &  param, QuantumType  qtype = QuantumType::Quantum  )

static

Definition at line 128 of file ZXGenerator.cpp.

create_gen() [3/3]

ZXGen_ptr tket::zx::ZXGen::create_gen ( ZXType  type, QuantumType  qtype = QuantumType::Quantum  )

static

Generic constructors for obtaining generators with more generality than going via subtype constructors.

Definition at line 91 of file ZXGenerator.cpp.

free_symbols()

virtual SymSet tket::zx::ZXGen::free_symbols ( ) const

pure virtual

Implemented in tket::zx::BoundaryGen, tket::zx::PhasedGen, tket::zx::CliffordGen, tket::zx::DirectedGen, and tket::zx::ZXBox.

get_name()

virtual std::string tket::zx::ZXGen::get_name ( bool  latex = false ) const

pure virtual

Outputs a string-based description for the generator.

This should be enough to specify the generator exactly.

Parameters

latex

whether the string should be formatted for LaTeX math mode or plaintext

Implemented in tket::zx::BoundaryGen, tket::zx::PhasedGen, tket::zx::CliffordGen, tket::zx::DirectedGen, and tket::zx::ZXBox.

get_qtype()

virtual std::optional< QuantumType > tket::zx::ZXGen::get_qtype ( ) const

pure virtual

Return the quantum type of the generator, if it is definable.

It may not be definable for directed generators that mix types of different ports, such as ZXBox.

What this means might be context dependent. Generally, we say that this is the expected quantum type of every incident edge. However, Classical BasicGen objects (spiders, HBox) can accept Quantum edges which are treated as a pair of edges.

Implemented in tket::zx::BoundaryGen, tket::zx::BasicGen, tket::zx::DirectedGen, and tket::zx::ZXBox.

get_type()

ZXType tket::zx::ZXGen::get_type

(

)

const

Definition at line 81 of file ZXGenerator.cpp.

is_equal()

bool tket::zx::ZXGen::is_equal ( const ZXGen &  other ) const

virtual

Implementation of equivalence checking to eliminate ambiguous warnings for operator==.

Assumes other matches the ZXType of this, so it is safe to cast.

Reimplemented in tket::zx::BoundaryGen, tket::zx::BasicGen, tket::zx::PhasedGen, tket::zx::CliffordGen, tket::zx::DirectedGen, and tket::zx::ZXBox.

Definition at line 87 of file ZXGenerator.cpp.

operator==()

bool tket::zx::ZXGen::operator==

(

const ZXGen &

other

)

const

Definition at line 83 of file ZXGenerator.cpp.

symbol_substitution()

virtual ZXGen_ptr tket::zx::ZXGen::symbol_substitution ( const SymEngine::map_basic_basic &  sub_map ) const

pure virtual

Operation with values substituted for symbols.

Parameters

sub_map

map from symbols to values

Returns

New operation with symbols substituted, or a null pointer if it is unchanged

Implemented in tket::zx::BoundaryGen, tket::zx::PhasedGen, tket::zx::CliffordGen, tket::zx::DirectedGen, and tket::zx::ZXBox.

valid_edge()

virtual bool tket::zx::ZXGen::valid_edge ( std::optional< unsigned >  port, QuantumType  qtype  ) const

pure virtual

Returns whether or not an edge of a given QuantumType can validly be placed on the given port.

Implemented in tket::zx::BoundaryGen, tket::zx::BasicGen, tket::zx::DirectedGen, and tket::zx::ZXBox.

Member Data Documentation

type_

const ZXType tket::zx::ZXGen::type_

protected

Definition at line 193 of file ZXGenerator.hpp.

---

The documentation for this class was generated from the following files:

• include/tket/ZX/ZXGenerator.hpp
• src/ZX/ZXGenerator.cpp
