Multiplexed single-axis rotations. More...

#include <Multiplexor.hpp>

Inheritance diagram for tket::MultiplexedRotationBox:

[legend]

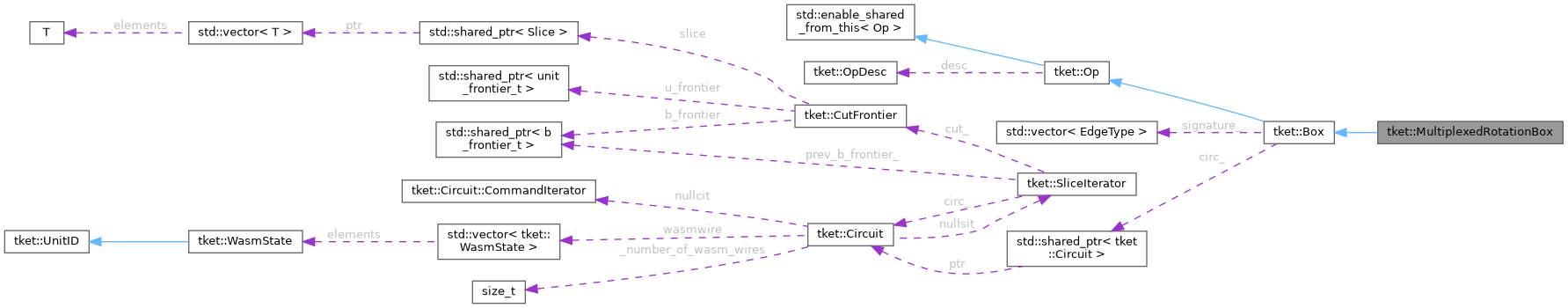

Collaboration diagram for tket::MultiplexedRotationBox:

[legend]

Public Member Functions
	MultiplexedRotationBox (const ctrl_op_map_t &op_map)
	Construct from a op_map.

	MultiplexedRotationBox (const MultiplexedRotationBox &other)
	Copy constructor.

	~MultiplexedRotationBox () override

Op_ptr	symbol_substitution (const SymEngine::map_basic_basic &sub_map) const override
	Operation with values for symbols substituted.

SymSet	free_symbols () const override
	Set of all free symbols occurring in operation parameters.

ctrl_op_map_t	get_ops () const

bool	is_equal (const Op &op_other) const override
	Equality check between two MultiplexedRotationBox instances.

Op_ptr	dagger () const override
	Inverse (of a unitary operation)

Op_ptr	transpose () const override
	Transpose of a unitary operation.

op_signature_t	get_signature () const override
	Vector specifying type of data for each port on op.

ctrl_op_map_t	get_op_map () const

std::vector< GateSpec >	decompose () const

Public Member Functions inherited from tket::Box
	Box (const OpType &type, const op_signature_t &signature={})

	Box (const Box &other)

unsigned	n_qubits () const override
	Number of Quantum inputs.

unsigned	n_boolean () const
	Number of Boolean inputs.

unsigned	n_classical () const
	Number of Classical inputs.

nlohmann::json	serialize () const override

std::shared_ptr< Circuit >	to_circuit () const
	Circuit represented by box.

virtual std::optional< Eigen::MatrixXcd >	get_box_unitary () const
	If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Box represents.

Eigen::MatrixXcd	get_unitary () const override
	If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Op represents.

boost::uuids::uuid	get_id () const
	Unique identifier (preserved on copy)

Public Member Functions inherited from tket::Op
virtual std::vector< Expr >	get_params () const
	Sequence of phase parameters, if applicable.

virtual std::vector< Expr >	get_params_reduced () const
	Sequence of phase parameters reduced to canonical range, if applicable.

virtual std::string	get_name (bool latex=false) const
	String representation.

virtual std::string	get_command_str (const unit_vector_t &args) const
	Command representation.

OpDesc	get_desc () const
	Get operation descriptor.

OpType	get_type () const
	Get operation type.

virtual std::optional< Pauli >	commuting_basis (port_t i) const
	Which Pauli, if any, commutes with the operation at a given port.

virtual bool	commutes_with_basis (const std::optional< Pauli > &colour, port_t i) const
	Whether the operation commutes with the given Pauli at the given port.

virtual bool	is_extern () const
	return if the op is external

virtual std::optional< double >	is_identity () const
	Test whether operation is identity up to a phase and return phase if so.

virtual bool	is_clifford () const
	Test whether operation is in the Clifford group.

virtual bool	has_symmetry (unsigned port1, unsigned port2) const
	Checks for symmetry of port pairs.

virtual	~Op ()

bool	operator== (const Op &other) const

Static Public Member Functions
static Op_ptr	from_json (const nlohmann::json &j)

static nlohmann::json	to_json (const Op_ptr &op)

Static Public Member Functions inherited from tket::Box
static Op_ptr	deserialize (const nlohmann::json &j)

Protected Member Functions
void	generate_circuit () const override
	Implement multiplexed rotation (i.e.

Protected Member Functions inherited from tket::Op
	Op (const OpType &type)

Additional Inherited Members
Static Protected Member Functions inherited from tket::Box
static boost::uuids::uuid	idgen ()

Protected Attributes inherited from tket::Box
op_signature_t	signature_

std::shared_ptr< Circuit >	circ_

boost::uuids::uuid	id_

Protected Attributes inherited from tket::Op
const OpDesc	desc_
	Operation descriptor.

const OpType	type_
	Operation type.

Detailed Description

Multiplexed single-axis rotations.

Definition at line 118 of file Multiplexor.hpp.

Constructor & Destructor Documentation

◆ MultiplexedRotationBox() [1/2]

tket::MultiplexedRotationBox::MultiplexedRotationBox ( const ctrl_op_map_t & op_map )

explicit

Construct from a op_map.

All ops should be of the same type. They can be either Rx, Ry or Rz.

Parameters

op_map

Definition at line 469 of file Multiplexor.cpp.

◆ MultiplexedRotationBox() [2/2]

tket::MultiplexedRotationBox::MultiplexedRotationBox ( const MultiplexedRotationBox & other )

Copy constructor.

Definition at line 503 of file Multiplexor.cpp.

◆ ~MultiplexedRotationBox()

tket::MultiplexedRotationBox::~MultiplexedRotationBox ( )

inlineoverride

Definition at line 132 of file Multiplexor.hpp.

Member Function Documentation

◆ dagger()

Op_ptr tket::MultiplexedRotationBox::dagger ( ) const

overridevirtual

Inverse (of a unitary operation)

Exceptions

BadOpType if operation is not unitary

Reimplemented from tket::Op.

Definition at line 520 of file Multiplexor.cpp.

◆ decompose()

std::vector< GateSpec > tket::MultiplexedRotationBox::decompose ( ) const

Definition at line 555 of file Multiplexor.cpp.

◆ free_symbols()

SymSet tket::MultiplexedRotationBox::free_symbols ( ) const

overridevirtual

Set of all free symbols occurring in operation parameters.

Implements tket::Op.

Definition at line 516 of file Multiplexor.cpp.

◆ from_json()

Op_ptr tket::MultiplexedRotationBox::from_json ( const nlohmann::json & j )

static

Definition at line 547 of file Multiplexor.cpp.

◆ generate_circuit()

void tket::MultiplexedRotationBox::generate_circuit ( ) const

overrideprotectedvirtual

Implement multiplexed rotation (i.e.

uniformly controlled same-axis rotations (UCR)), with 2^ctrl_qubits SQ rotations, 2^ctrl_qubits CXs, and 2 H gates for X-axis rotations.

https://arxiv.org/abs/quant-ph/0410066

Implements tket::Box.

Definition at line 581 of file Multiplexor.cpp.

◆ get_op_map()

ctrl_op_map_t tket::MultiplexedRotationBox::get_op_map ( ) const

inline

Definition at line 152 of file Multiplexor.hpp.

◆ get_ops()

ctrl_op_map_t tket::MultiplexedRotationBox::get_ops ( ) const

inline

Definition at line 139 of file Multiplexor.hpp.

◆ get_signature()

op_signature_t tket::MultiplexedRotationBox::get_signature ( ) const

overridevirtual

Vector specifying type of data for each port on op.

Reimplemented from tket::Box.

Definition at line 528 of file Multiplexor.cpp.

◆ is_equal()

bool tket::MultiplexedRotationBox::is_equal ( const Op & op_other ) const

overridevirtual

Equality check between two MultiplexedRotationBox instances.

Reimplemented from tket::Op.

Definition at line 533 of file Multiplexor.cpp.

◆ symbol_substitution()

Op_ptr tket::MultiplexedRotationBox::symbol_substitution ( const SymEngine::map_basic_basic & sub_map ) const

overridevirtual

Operation with values for symbols substituted.

Parameters

sub_map map from symbols to values

Returns: New operation with symbols substituted, or a null pointer if the operation type does not support symbols.

Implements tket::Op.

Definition at line 510 of file Multiplexor.cpp.

◆ to_json()

nlohmann::json tket::MultiplexedRotationBox::to_json ( const Op_ptr & op )

static

Definition at line 540 of file Multiplexor.cpp.

◆ transpose()

Op_ptr tket::MultiplexedRotationBox::transpose ( ) const

overridevirtual

Transpose of a unitary operation.

Reimplemented from tket::Op.

Definition at line 524 of file Multiplexor.cpp.

The documentation for this class was generated from the following files:

include/tket/Circuit/Multiplexor.hpp
src/Circuit/Multiplexor.cpp
