Abstract class for an operation from which a circuit can be extracted. More...

#include <Boxes.hpp>

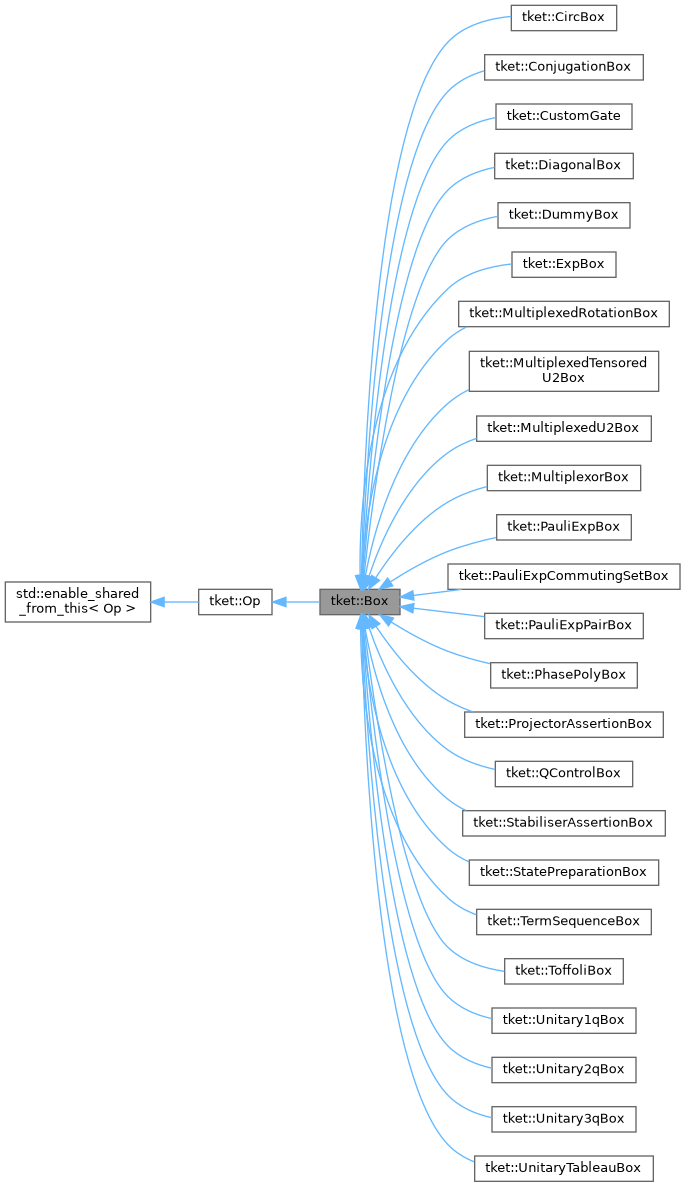

Inheritance diagram for tket::Box:

[legend]

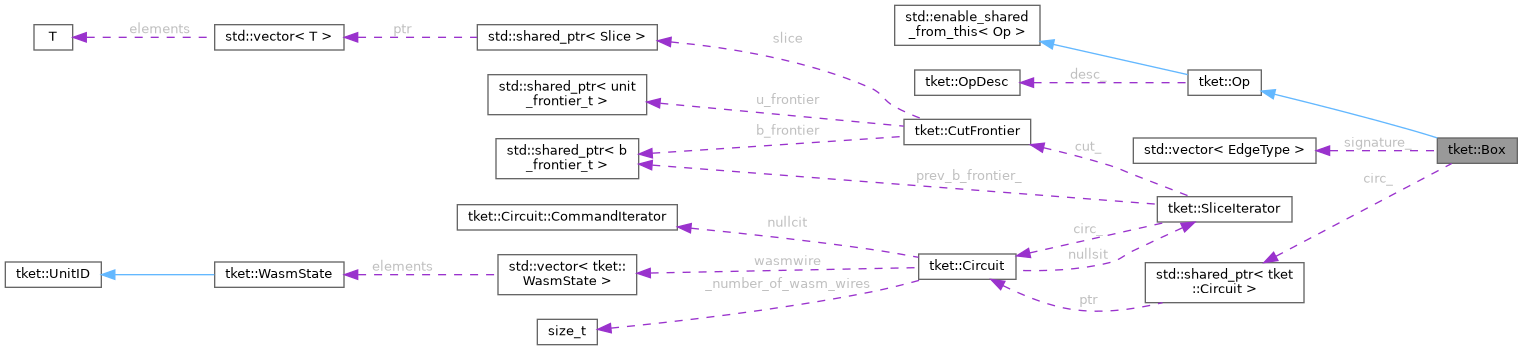

Collaboration diagram for tket::Box:

[legend]

Public Member Functions
	Box (const OpType &type, const op_signature_t &signature={})

	Box (const Box &other)

unsigned	n_qubits () const override
	Number of Quantum inputs.

unsigned	n_boolean () const
	Number of Boolean inputs.

unsigned	n_classical () const
	Number of Classical inputs.

op_signature_t	get_signature () const override
	Vector specifying type of data for each port on op.

nlohmann::json	serialize () const override

std::shared_ptr< Circuit >	to_circuit () const
	Circuit represented by box.

virtual std::optional< Eigen::MatrixXcd >	get_box_unitary () const
	If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Box represents.

Eigen::MatrixXcd	get_unitary () const override
	If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Op represents.

boost::uuids::uuid	get_id () const
	Unique identifier (preserved on copy)

Public Member Functions inherited from tket::Op
virtual Op_ptr	dagger () const
	Inverse (of a unitary operation)

virtual Op_ptr	transpose () const
	Transpose of a unitary operation.

virtual Op_ptr	symbol_substitution (const SymEngine::map_basic_basic &sub_map) const =0
	Operation with values for symbols substituted.

virtual std::vector< Expr >	get_params () const
	Sequence of phase parameters, if applicable.

virtual std::vector< Expr >	get_params_reduced () const
	Sequence of phase parameters reduced to canonical range, if applicable.

virtual std::string	get_name (bool latex=false) const
	String representation.

virtual std::string	get_command_str (const unit_vector_t &args) const
	Command representation.

OpDesc	get_desc () const
	Get operation descriptor.

OpType	get_type () const
	Get operation type.

virtual SymSet	free_symbols () const =0
	Set of all free symbols occurring in operation parameters.

virtual std::optional< Pauli >	commuting_basis (port_t i) const
	Which Pauli, if any, commutes with the operation at a given port.

virtual bool	commutes_with_basis (const std::optional< Pauli > &colour, port_t i) const
	Whether the operation commutes with the given Pauli at the given port.

virtual bool	is_extern () const
	return if the op is external

virtual std::optional< double >	is_identity () const
	Test whether operation is identity up to a phase and return phase if so.

virtual bool	is_clifford () const
	Test whether operation is in the Clifford group.

virtual bool	has_symmetry (unsigned port1, unsigned port2) const
	Checks for symmetry of port pairs.

virtual	~Op ()

bool	operator== (const Op &other) const

virtual bool	is_equal (const Op &) const
	Checks equality between two instances of the same class.

Static Public Member Functions
static Op_ptr	deserialize (const nlohmann::json &j)

Protected Member Functions
virtual void	generate_circuit () const =0

Protected Member Functions inherited from tket::Op
	Op (const OpType &type)

Static Protected Member Functions
static boost::uuids::uuid	idgen ()

Protected Attributes
op_signature_t	signature_

std::shared_ptr< Circuit >	circ_

boost::uuids::uuid	id_

Protected Attributes inherited from tket::Op
const OpDesc	desc_
	Operation descriptor.

const OpType	type_
	Operation type.

Friends
template<typename BoxT >
Op_ptr	set_box_id (BoxT &b, boost::uuids::uuid newid)
	Set explicit ID on a box.

Detailed Description

Abstract class for an operation from which a circuit can be extracted.

Definition at line 38 of file Boxes.hpp.

Constructor & Destructor Documentation

◆ Box() [1/2]

tket::Box::Box	(	const OpType &	type,
		const op_signature_t &	signature = `{}`
	)

inlineexplicit

Definition at line 40 of file Boxes.hpp.

◆ Box() [2/2]

tket::Box::Box ( const Box & other )

inline

Definition at line 45 of file Boxes.hpp.

Member Function Documentation

◆ deserialize()

Op_ptr tket::Box::deserialize ( const nlohmann::json & j )

static

Definition at line 70 of file Boxes.cpp.

◆ generate_circuit()

virtual void tket::Box::generate_circuit ( ) const

protectedpure virtual

◆ get_box_unitary()

virtual std::optional< Eigen::MatrixXcd > tket::Box::get_box_unitary ( ) const

inlinevirtual

If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Box represents.

Returns: unitary matrix (ILO-BE) which this Box represents

Reimplemented in tket::Unitary1qBox, tket::Unitary2qBox, tket::Unitary3qBox, tket::ExpBox, tket::QControlBox, and tket::ToffoliBox.

Definition at line 78 of file Boxes.hpp.

◆ get_id()

boost::uuids::uuid tket::Box::get_id ( ) const

inline

Unique identifier (preserved on copy)

Definition at line 91 of file Boxes.hpp.

◆ get_signature()

op_signature_t tket::Box::get_signature ( ) const

overridevirtual

Vector specifying type of data for each port on op.

Implements tket::Op.

Reimplemented in tket::ProjectorAssertionBox, tket::StabiliserAssertionBox, tket::DiagonalBox, tket::DummyBox, tket::MultiplexorBox, tket::MultiplexedRotationBox, tket::MultiplexedU2Box, tket::MultiplexedTensoredU2Box, tket::StatePreparationBox, tket::ToffoliBox, and tket::UnitaryTableauBox.

Definition at line 55 of file Boxes.cpp.

◆ get_unitary()

Eigen::MatrixXcd tket::Box::get_unitary ( ) const

inlineoverridevirtual

If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Op represents.

Precondition: No symbolic parameters.

Returns: unitary matrix (ILO-BE) which this Op represents

Exceptions

BadOpType upon error.

Reimplemented from tket::Op.

Definition at line 82 of file Boxes.hpp.

◆ idgen()

static boost::uuids::uuid tket::Box::idgen ( )

inlinestaticprotected

Definition at line 97 of file Boxes.hpp.

◆ n_boolean()

unsigned tket::Box::n_boolean ( ) const

Number of Boolean inputs.

Definition at line 45 of file Boxes.cpp.

◆ n_classical()

unsigned tket::Box::n_classical ( ) const

Number of Classical inputs.

Definition at line 50 of file Boxes.cpp.

◆ n_qubits()

unsigned tket::Box::n_qubits ( ) const

overridevirtual

Number of Quantum inputs.

Reimplemented from tket::Op.

Definition at line 40 of file Boxes.cpp.

◆ serialize()

nlohmann::json tket::Box::serialize ( ) const

overridevirtual

Reimplemented from tket::Op.

Definition at line 63 of file Boxes.cpp.

◆ to_circuit()

std::shared_ptr< Circuit > tket::Box::to_circuit ( ) const

inline

Circuit represented by box.

Definition at line 67 of file Boxes.hpp.

Friends And Related Symbol Documentation

◆ set_box_id

template<typename BoxT >

Op_ptr set_box_id	(	BoxT &	b,
		boost::uuids::uuid	newid
	)

friend

Set explicit ID on a box.

This is used for deserialization.

Parameters

	b	box
[in]	newid	new ID

Template Parameters

BoxT	concrete box type

Returns: box with desired ID

Definition at line 125 of file Boxes.hpp.

Member Data Documentation

◆ circ_

std::shared_ptr<Circuit> tket::Box::circ_

mutableprotected

Definition at line 103 of file Boxes.hpp.

◆ id_

boost::uuids::uuid tket::Box::id_

protected

Definition at line 104 of file Boxes.hpp.

◆ signature_

op_signature_t tket::Box::signature_

protected

Definition at line 102 of file Boxes.hpp.

The documentation for this class was generated from the following files:

include/tket/Circuit/Boxes.hpp
src/Circuit/Boxes.cpp
