Multiplexed U2 gate. More...

#include <Multiplexor.hpp>

Inheritance diagram for tket::MultiplexedU2Box:

[legend]

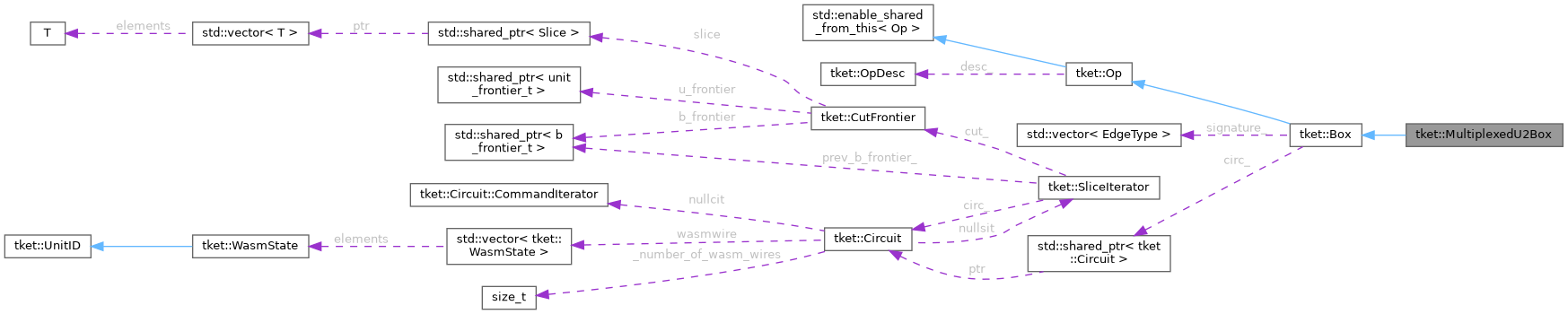

Collaboration diagram for tket::MultiplexedU2Box:

[legend]

Public Member Functions
	MultiplexedU2Box (const ctrl_op_map_t &op_map, bool impl_diag=true)
	Construct from a op_map.

	MultiplexedU2Box (const MultiplexedU2Box &other)
	Copy constructor.

	~MultiplexedU2Box () override

Op_ptr	symbol_substitution (const SymEngine::map_basic_basic &sub_map) const override
	Operation with values for symbols substituted.

SymSet	free_symbols () const override
	Set of all free symbols occurring in operation parameters.

ctrl_op_map_t	get_ops () const

bool	is_equal (const Op &op_other) const override
	Equality check between two MultiplexedU2Box instances.

Op_ptr	dagger () const override
	Inverse (of a unitary operation)

Op_ptr	transpose () const override
	Transpose of a unitary operation.

op_signature_t	get_signature () const override
	Vector specifying type of data for each port on op.

ctrl_op_map_t	get_op_map () const

bool	get_impl_diag () const

MultiplexedU2Commands	decompose () const
	Decompose the multiplexor into a sequence of interleaving CX and single qubit gates followed by a diagonal matrix, given as command descriptions and a diagonal vector.

Public Member Functions inherited from tket::Box
	Box (const OpType &type, const op_signature_t &signature={})

	Box (const Box &other)

unsigned	n_qubits () const override
	Number of Quantum inputs.

unsigned	n_boolean () const
	Number of Boolean inputs.

unsigned	n_classical () const
	Number of Classical inputs.

nlohmann::json	serialize () const override

std::shared_ptr< Circuit >	to_circuit () const
	Circuit represented by box.

virtual std::optional< Eigen::MatrixXcd >	get_box_unitary () const
	If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Box represents.

Eigen::MatrixXcd	get_unitary () const override
	If meaningful and implemented, return the numerical unitary matrix (in ILO-BE convention) which this Op represents.

boost::uuids::uuid	get_id () const
	Unique identifier (preserved on copy)

Public Member Functions inherited from tket::Op
virtual std::vector< Expr >	get_params () const
	Sequence of phase parameters, if applicable.

virtual std::vector< Expr >	get_params_reduced () const
	Sequence of phase parameters reduced to canonical range, if applicable.

virtual std::string	get_name (bool latex=false) const
	String representation.

virtual std::string	get_command_str (const unit_vector_t &args) const
	Command representation.

OpDesc	get_desc () const
	Get operation descriptor.

OpType	get_type () const
	Get operation type.

virtual std::optional< Pauli >	commuting_basis (port_t i) const
	Which Pauli, if any, commutes with the operation at a given port.

virtual bool	commutes_with_basis (const std::optional< Pauli > &colour, port_t i) const
	Whether the operation commutes with the given Pauli at the given port.

virtual bool	is_extern () const
	return if the op is external

virtual std::optional< double >	is_identity () const
	Test whether operation is identity up to a phase and return phase if so.

virtual bool	is_clifford () const
	Test whether operation is in the Clifford group.

virtual bool	has_symmetry (unsigned port1, unsigned port2) const
	Checks for symmetry of port pairs.

virtual	~Op ()

bool	operator== (const Op &other) const

Static Public Member Functions
static Op_ptr	from_json (const nlohmann::json &j)

static nlohmann::json	to_json (const Op_ptr &op)

Static Public Member Functions inherited from tket::Box
static Op_ptr	deserialize (const nlohmann::json &j)

Protected Member Functions
void	generate_circuit () const override
	Implement multiplexed U2 gate (i.e.

Protected Member Functions inherited from tket::Op
	Op (const OpType &type)

Additional Inherited Members
Static Protected Member Functions inherited from tket::Box
static boost::uuids::uuid	idgen ()

Protected Attributes inherited from tket::Box
op_signature_t	signature_

std::shared_ptr< Circuit >	circ_

boost::uuids::uuid	id_

Protected Attributes inherited from tket::Op
const OpDesc	desc_
	Operation descriptor.

const OpType	type_
	Operation type.

Detailed Description

Multiplexed U2 gate.

Definition at line 191 of file Multiplexor.hpp.

Constructor & Destructor Documentation

◆ MultiplexedU2Box() [1/2]

tket::MultiplexedU2Box::MultiplexedU2Box	(	const ctrl_op_map_t &	op_map,
		bool	impl_diag = `true`
	)

explicit

Construct from a op_map.

Ops must be single-qubit unitary gate types or Unitary1QBox.

Parameters

op_map
impl_diag	whether to implement the final DiagonalBox, default to true

Definition at line 616 of file Multiplexor.cpp.

◆ MultiplexedU2Box() [2/2]

tket::MultiplexedU2Box::MultiplexedU2Box ( const MultiplexedU2Box & other )

Copy constructor.

Definition at line 642 of file Multiplexor.cpp.

◆ ~MultiplexedU2Box()

tket::MultiplexedU2Box::~MultiplexedU2Box ( )

inlineoverride

Definition at line 207 of file Multiplexor.hpp.

Member Function Documentation

◆ dagger()

Op_ptr tket::MultiplexedU2Box::dagger ( ) const

overridevirtual

Inverse (of a unitary operation)

Exceptions

BadOpType if operation is not unitary

Reimplemented from tket::Op.

Definition at line 658 of file Multiplexor.cpp.

◆ decompose()

MultiplexedU2Commands tket::MultiplexedU2Box::decompose ( ) const

Decompose the multiplexor into a sequence of interleaving CX and single qubit gates followed by a diagonal matrix, given as command descriptions and a diagonal vector.

Returns: MultiplexedU2Commands

Definition at line 696 of file Multiplexor.cpp.

◆ free_symbols()

SymSet tket::MultiplexedU2Box::free_symbols ( ) const

overridevirtual

Set of all free symbols occurring in operation parameters.

Implements tket::Op.

Definition at line 654 of file Multiplexor.cpp.

◆ from_json()

Op_ptr tket::MultiplexedU2Box::from_json ( const nlohmann::json & j )

static

Definition at line 688 of file Multiplexor.cpp.

◆ generate_circuit()

void tket::MultiplexedU2Box::generate_circuit ( ) const

overrideprotectedvirtual

Implement multiplexed U2 gate (i.e.

uniformly controlled U2 gate (UCU2)) with 2^ctrl_qubits SQ gates, 2^ctrl_qubits CXs, and a DiagonalBox at the end

https://arxiv.org/abs/quant-ph/0410066

Implements tket::Box.

Definition at line 753 of file Multiplexor.cpp.

◆ get_impl_diag()

bool tket::MultiplexedU2Box::get_impl_diag ( ) const

inline

Definition at line 229 of file Multiplexor.hpp.

◆ get_op_map()

ctrl_op_map_t tket::MultiplexedU2Box::get_op_map ( ) const

inline

Definition at line 227 of file Multiplexor.hpp.

◆ get_ops()

ctrl_op_map_t tket::MultiplexedU2Box::get_ops ( ) const

inline

Definition at line 214 of file Multiplexor.hpp.

◆ get_signature()

op_signature_t tket::MultiplexedU2Box::get_signature ( ) const

overridevirtual

Vector specifying type of data for each port on op.

Reimplemented from tket::Box.

Definition at line 667 of file Multiplexor.cpp.

◆ is_equal()

bool tket::MultiplexedU2Box::is_equal ( const Op & op_other ) const

overridevirtual

Equality check between two MultiplexedU2Box instances.

Reimplemented from tket::Op.

Definition at line 672 of file Multiplexor.cpp.

◆ symbol_substitution()

Op_ptr tket::MultiplexedU2Box::symbol_substitution ( const SymEngine::map_basic_basic & sub_map ) const

overridevirtual

Operation with values for symbols substituted.

Parameters

sub_map map from symbols to values

Returns: New operation with symbols substituted, or a null pointer if the operation type does not support symbols.

Implements tket::Op.

Definition at line 648 of file Multiplexor.cpp.

◆ to_json()

nlohmann::json tket::MultiplexedU2Box::to_json ( const Op_ptr & op )

static

Definition at line 680 of file Multiplexor.cpp.

◆ transpose()

Op_ptr tket::MultiplexedU2Box::transpose ( ) const

overridevirtual

Transpose of a unitary operation.

Reimplemented from tket::Op.

Definition at line 662 of file Multiplexor.cpp.
